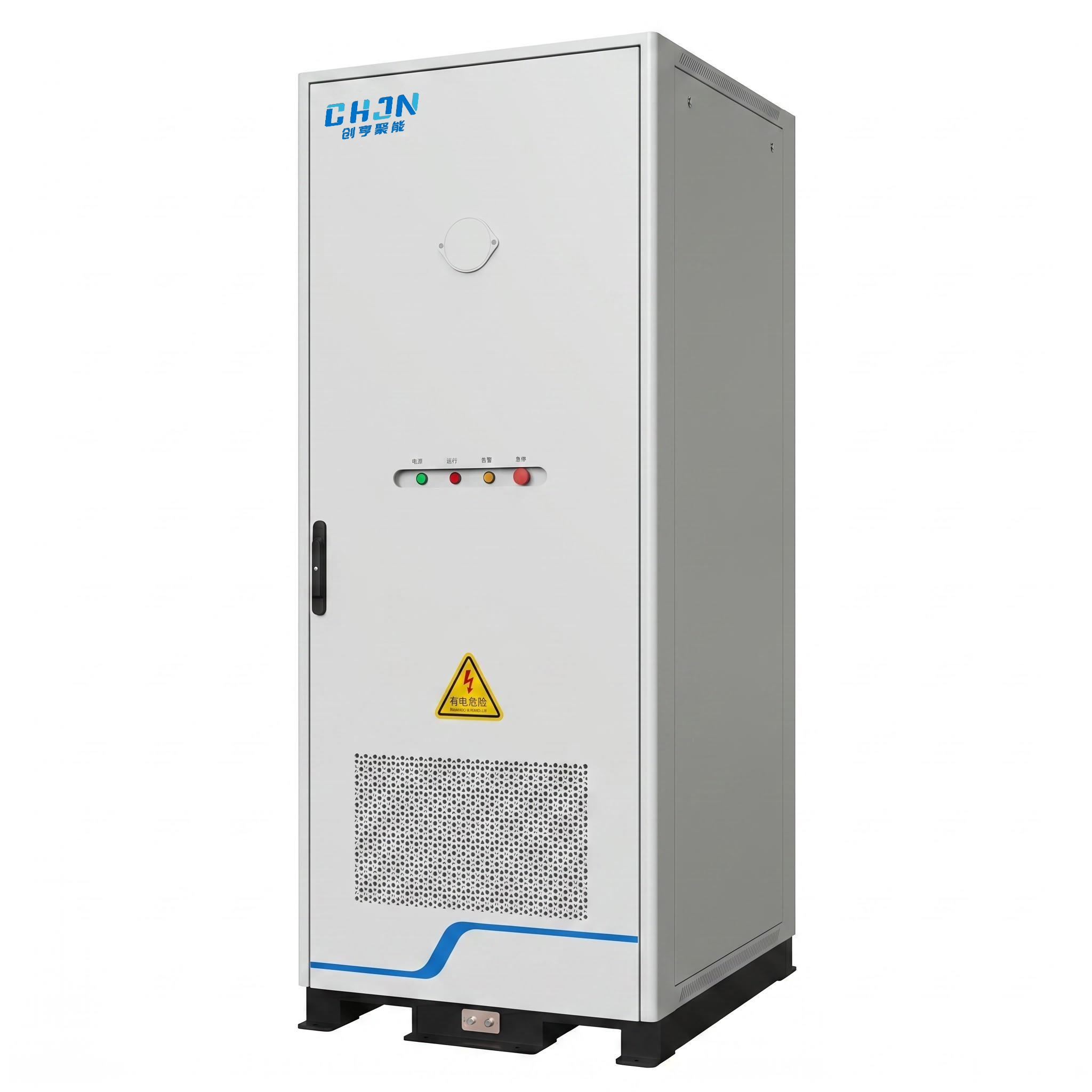

工商业一体化储能系列
柜式储能系统
215kWh/223kWh/240kWh/420kWh/480kWh
满足多种业态的生产场景能源储备需求。
Cabinet-type Energy Storage System
215kWh/223kWh/240kWh/420kWh/480kWh
Meet the energy reserve demands of production scenarios across diverse business formats.
灵活：
Flexible：
• 简易安装 ，叉车吊车可移动
Easy installation, movable by forklift and crane
• 满足不同客户需求 ， 占地面积小
Small footprint to meet diverse customer needs
模块化：
Modular Design：
• 模块化生产 ，不同容量随意组装 ，成本降
Modular production with flexible combination of different capacities to reduce costs.
• 电池包单独管理 ，维修不影响正常使用
Independent management of battery packs; maintenance does not affect normal operation.
• 扩容简单 ，即插即用 ，单元电能容量大
Simple capacity expansion, plug-and-play, and large unit power capacity.
安全：
Safety：
• 单簇独立充放电 ，互不影响 ，均衡控制 ，三重消防安全设计
Independent charging and discharging for each cluster without mutual interference, with balanced control and triple fire safety design.
• 多种安全策略 ，在线预警 ，系统联动保护 ，确保储能安全
Adopt multiple safety strategies, online early warning and system linkage protection to ensure energy storage safety.
CN-N Power系列储能液冷一体柜 CN-N Power Series Liquid-Cooled Integrated Energy Storage Cabinet | |||
序号 No. | 项目 Project | 规格参数 Specifications & Parameters | |
直流侧 DC side | 1 | 电芯 Cell | 280Ah |
2 | 电池模块 Battery Module | 1P48S | |
3 | 机柜系统 Cabinet System | 1P240S | |
4 | 额定能量 Rated Energy | 215kWh/223kWh/240kWh/420kWh/480kWh | |
5 | 直流标称电压 DC Nominal Voltage | 768V | |
6 | 直流工作电压范围 DC Operating Voltage Range | 680V~876V | |
交流侧 AC side | 7 | 交流额定输出电压 Rated AC Output Voltage | 380V ±3% |
8 | 额定输出频率 Rated Output Frequency | 50Hz/60Hz | |
9 | 交流额定功率 AC Rated Power | 105kW/125kW/200kW/250kW | |
系统 System | 10 | 工作温度范围 Operating Temperature Range | 充电：0℃~45℃ |
放电：-20 °C ~ 55 °C | |||
11 | 对外通讯方式 External Communication Mode | RS485/以太网/CAN2.0 | |
12 | 机柜尺寸(宽、厚、高） Cabinet Dimensions (Width, Depth, Height) | 1300mm*1300mm*2100mm/1000mm*1300mm*2100mm | |
13 | 电池系统重量（预估） Battery System Weight (Estimated) | 3t | |
14 | 系统防护等级 System Protection Grade | IP54 | |
系统构成：
System Composition:
• 一体式集成
Integrated all-in-one design
• 单组串设计， 并联零容损
Single string design, zero capacity loss in parallel connection
• 削峰填谷， 调峰调频
Peak shaving and valley filling, peak and frequency regulation
• 多机并联， 即插即用即扩容
Multi-machine parallel connection, plug-and-play and capacity expansion on demand

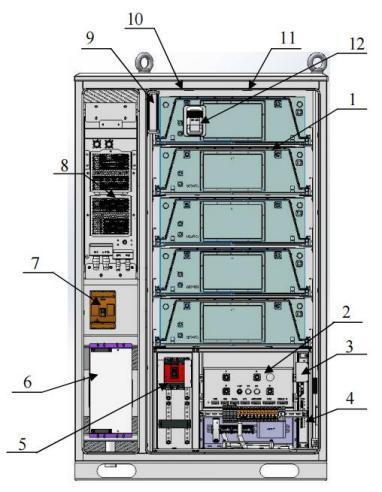

• 系统主要部件清单
List of Main System Components
序列 No. | 部件名称 Part Name |
1 | 1P48S电池模组 1P48S Battery Module |
2 | 高压箱 High Voltage Box |
3 | 交换机 Switch |
4 | EMS控制器 EMS Controller |
5 | 交流断路器 AC Circuit Breaker |
6 | PCS Power Conversion System |
7 | 直流断路器 DC Circuit Breaker |
8 | 液冷机 Liquid Cooling Machine |
9 | 气溶胶灭火器 Aerosol Fire Extinguisher |
